SpaceX Falcon 9 Block 5 - Starlink L12 - Launched October 6, 2020
Screenshot from SpaceX Webcast of the launch of Starlink L12
Mission Rundown: SpaceX Falcon 9 B5 - Starlink L12
Written: July 22, 2021
On double LZ recovery duty these days
SpaceX will launch 60 Starlink satellites on their Falcon 9 rocket. It’s launching Tuesday at 08:46 EDT - 12:46 UTC on October 6, 2020, from Launch Complex 39A - LC-39A, at the Kennedy Space Center, Florida. Starlink L12 is the latest operational launch of SpaceX’s Starlink communication satellite constellation.
SpaceX’s near-global satellite constellation – Starlink, aims to deliver a fast, low-latency broadband internet service to locations where access has previously been unreliable, expensive, or completely unavailable. This is the thirteenth flight of Starlink “L0 - L12”.
After boosting the second stage along with its payload towards orbit, the first stage will perform an entry burn to slow the vehicle down in preparation for atmospheric reentry. The booster will then land 633 km downrange aboard SpaceX’s autonomous spaceport drone ship. Starlink V1.0 L12 first stage booster B1058-3 is set to again land on ‘Of Course I Still Love You‘ around eight to nine minutes after liftoff.

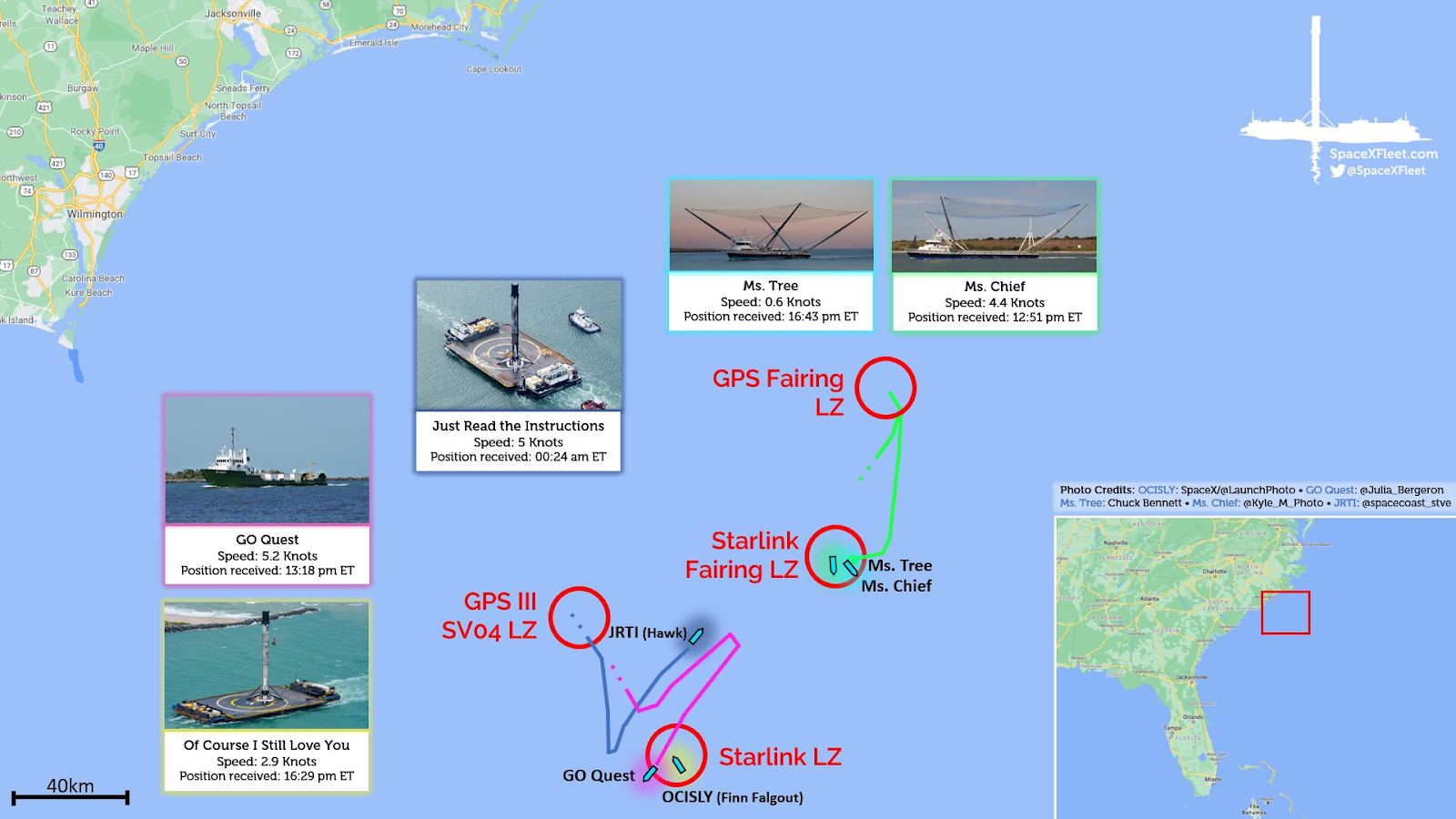

Spacex recovery fleet on double LZ recovery duty plus fairing recovery further downrange. Busy.
SpaceX will also attempt to recover both fairing halves with their humorously named fairing catcher vessels: ‘GO Ms. Tree‘ and ‘GO Ms. Chief.’
SpaceX is the first entity ever that recovers and reflies its fairings. The recovery vessels, Go Ms. Tree and Go Ms. Chief, will most likely attempt to recover the fairing halves. After being jettisoned, the two fairing halves will use cold gas thrusters to orientate themselves as they descend through the atmosphere. Once at a lower altitude, they will deploy drogue chutes and parafoils to help them glide down to a soft landing for recovery.
B1058 first flew on its maiden flight on the SpaceX Demonstration Mission 2, which launched Bob Behnken and Doug Hurley to orbit on May 30, 2020. Starlink L12 is its third flight; so its designation changes to B1058-3.
To save money and time for the launch, B1058 was not static fire tested. This is the third time SpaceX has omitted this safety precaution.
This time the fairings consist of one double reused fairing and one new fairing. Check out these recovery marks on cauth fairings and salvaged fairings.
The Payload
SpaceX plans to offer service in North America by the end of 2020 and estimates that once complete, its venture will make $30-50 billion annually. The funds from which will, in turn, be used to finance its ambitious Mars program.
To achieve initial coverage, SpaceX plans to form a net of 12,000 satellites, which will operate in conjunction with ground stations, akin to a mesh network.
Furthermore, the company recently filed for FCC permission on an additional 30,000 spacecraft, which, if granted, could see the constellation amount to a lucrative 42,000. This would octuple the number of operational satellites in earth orbit, further raising concerns about the constellations' effect on the night sky and earth-based astronomy.
For more information on Starlink, watch the Real Engineering video listed below.
Each Starlink satellite is a compact design that weighs 260 kg. SpaceX developed them to be a flat-panel design to fit as many satellites as possible within the Falcon 9’s 5.2 meter wide payload fairing. 60 satellites fit into a dispenser affixed to the second stage. The entire Starlink payload weighs around 15,600 kg. That’s near the limit that a Falcon 9 can lift into LEO and still have enough propellant for landing.
For such small satellites, each one comes loaded with high-tech communications technology. There are six antennas, four high-powered phased-array and two parabolic ones that all support high-speed data throughput. Starlink also features a SpaceX built and designed star track navigation system to enable precision placement of broadband throughput.
Four inter-satellite laser links (ISLLs) allow high-speed communication between Starlink satellites. SpaceX placed two ISLLs on the front and rear of the satellite to talk with Starlink satellites in the same orbital plane. They remain fixed in position. Two ISLLs on the satellite’s sides track other Starlink satellites in different orbital planes. This means they have to move to track the other satellites.
Starlink Orbit Plans
The thirteen launches of one testbed Starlink mission and twelve operational Starlink missions V0.9 L0 - V1.0 L12 brings the total number of launched operational Starlink satellites to 713. How many that still work’s, or are in orbit, are in this old article.
The sum of following Starlink batches: 60 60 60 60 60 60 60 58 57 58 60 60 = 713
On board the Starlink L12 flight were 60 of SpaceX’s Starlink internet satellites, which will now join the 653 v1.0 satellites already on orbit. Of the v1.0 satellites that have been launched prior to this launch, four have either destructively reentered, as designed, or after encountering issues after launch leaving 649 operational Starlink V1.0 satellites.
The fleet of test satellites V0.9 which formed the v1.0 design are also currently in the process of being deorbited for destructive reentries. The Tintin B satellite, one of two Tintin test satellites launched in 2018, reentered on August 8. Tintin A’s orbit is also decaying and expected to re-enter Earth’s atmosphere in the near future.
Of the 60 v0.9 satellites launched in 2019, four have reentered to date, with the remaining 56 either actively deorbiting or naturally decaying. The Tintin and v0.9 satellites will not be part of the operational Starlink satellite constellation.
SpaceX will assign 20 Satellite Vehicles to each of three adjacent orbital planes. Orbital planes are to satellites as tracks are to trains – they are orbits parallel to each other designed to maximize area coverage while minimizing the number of satellites required.
That 18th plane consisted of satellites from the v1.0 L9 mission, with some satellites from previous launches being used to fill in between existing planes. There will eventually be 72 planes of 22 satellites each in the initial shell of the Starlink constellation.
Look for an Animation by Ben Craddock for NASASpaceflight showing the movements of Starlink satellites into their orbital planes since August 1, 2020. The satellites from each launch split into three groups that each form a plane.
In the lower right portion of the animation, the deorbiting of the v0.9 test satellites can be seen. So far, 39 satellites from that first test launch of Starlinks have been deorbited, with more on the way. These early satellites lack part of the communications payload needed for full operation.
Maybe they need a set of pinchers and to go find some space debris? Hmm.
SpaceX plans to begin offering Starlink service to Canada and the northern United States later this year. Near global coverage is expected to start next year. Pricing has not been made public, but it has been hinted that speeds up to one gigabit may be possible.
Having now filled 18 evenly spaced planes in the constellation, SpaceX should be attaining continuous coverage in the northern U.S. and southern Canada areas where they intend to launch the Starlink service.
Ion Drive with Krypton gas
Innovative ion propulsion technology keeps these satellites in the correct position while on orbit. They use ion Hall-effect thrusters to achieve their working orbit. Each Starlink satellite incorporates an autonomous collision avoidance system. It uses the Department of Defence’s debris tracking data to avoid colliding with space debris or other satellites.
Starlink’s low altitude also allows SpaceX to easily deorbit malfunctioning satellites, even if their engines fail. Although 100 km is commonly described as the upper limit of Earth’s atmosphere, there is no “hard barrier”. Even at 550 km altitude, there is still a slight amount of atmospheric drag pulling the satellites down. Each satellite’s onboard ion Hall-effect thruster engines is powerful enough to keep it in orbit, but if the engine fails, it will fall back to Earth within about a year. Read about the Hall-effect thruster engine here.
The miniscule atmospheric drag in low Earth orbit will help ensure that dead satellites don’t stay in orbit for long. This will help reduce the amount of space debris in orbit, which is rapidly becoming a major concern.
Starlink Satellite Constellation
Constellations use multiple satellites working in conjunction for a common purpose. SpaceX plans eventually to form a network of about 12,000 satellites. They will operate roughly 4,400 satellites using Ku- and Ka-band radio spectrum, and almost another 7,500 satellites in the V-band.
To achieve initial coverage, Starlink will use 72 orbital planes, angled at 53 degrees from the Earth’s equator at an altitude of 550 km. They will put 22 satellites into each of these orbital planes, totalling 1,584 satellites. They will communicate with other Starlink satellites and with ground stations, akin to a mesh network.
In late 2019, the company asked the American Federal Communications Commission (FCC) for permission to launch an additional 30,000 satellites into orbits ranging from 328 km to 580 km in altitude. If the FCC okays the request, the constellation could grow to 42,000 satellites. This would increase the number of operational satellites in Earth orbit by at least a factor of 20 from pre-2019 levels.
The constellation’s large numbers are raising concerns regarding their effect on the night sky and Earth-based astronomy. However, Elon Musk stated that he is confident that SpaceX can mitigate light pollution issues and is working with industry experts to minimize the potential for any impact. Future Starlink satellites will use a sunshade that is a patio-like umbrella to reduce light reflectivity.
This batch of 60 Starlink satellites should be "VisorSat" fitted with the new sunshade to help reduce the brightness of the satellites as seen from the ground. These visors will deploy shortly after spacecraft separation during Saturday’s launch.
As was the case with a single Starlink satellite on the V1.0 L7 mission (launched on June 4), all Starlink satellites that will launch on subsequent missions “L8 - L12” going forward will feature a sun shade or visor, which will assist in blocking sunlight from reflecting off the majority of the spacecraft body while in orbit and reducing its overall albedo/intrinsic brightness as observed from the ground.
Starlink ground antennas
Prototypes of the Starlink user terminal antenna have been spotted alongside the other antennas at Starlink gateway locations in Boca Chica, Texas and Merrillan, Wisconsin. These user terminals will be crucial to the success of the Starlink network.
SpaceX board member Steve Jurvetson recently tweeted that the company’s board had an opportunity to try out the user terminals at the company headquarters in Hawthorne. The devices use a Power over Ethernet (PoE) cable for their power and data connection. The antenna connects to a SpaceX branded router with Wi-Fi (802.a/b/g/n/ac, transmitting at 2.4 & 5GHz). SpaceX is producing the antenna assemblies in-house while outsourcing production of the more common router component.
SpaceX continues to make progress setting up its network of 34 gateways for the Starlink system. New gateways are being added in the Northwest and North Central U.S. with locations in Northern California, Idaho, Minnesota, Montana, Washington, and Wyoming. In the Southeastern U.S. Previously filed gateways in Tennessee and Florida were removed while new gateway locations were added in Arizona, Georgia Kansas and Alabama.
Emergency crews in Malden, Washington got a disk as seen in the SpaceX webcast.
